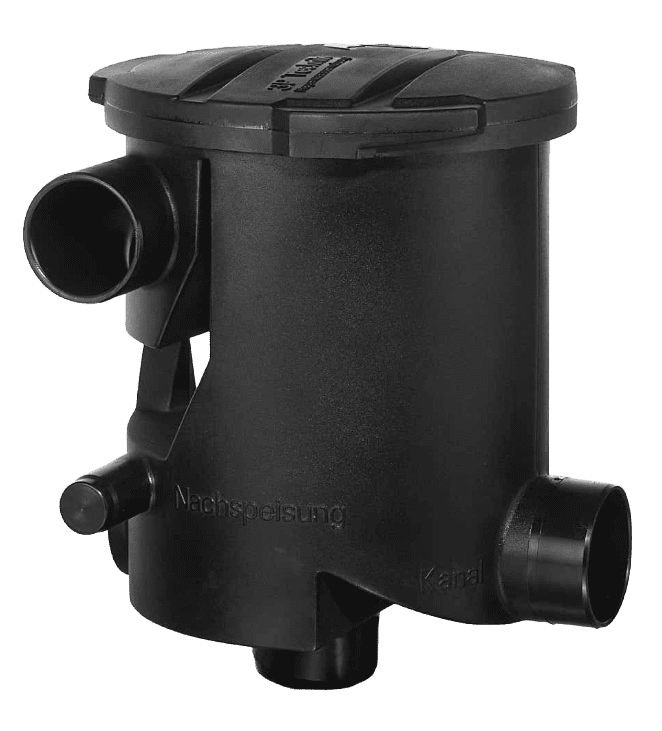

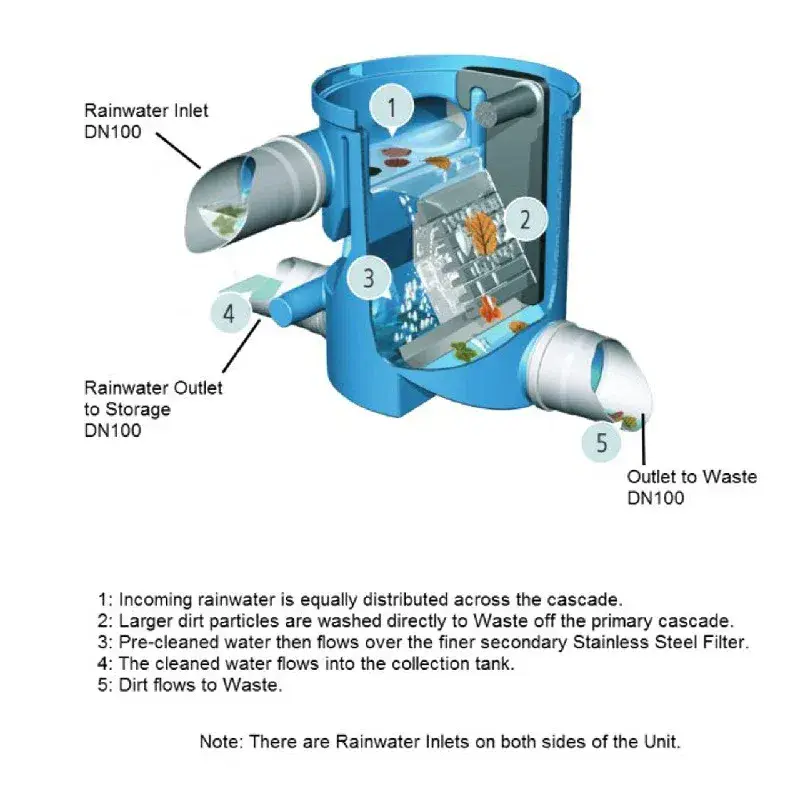

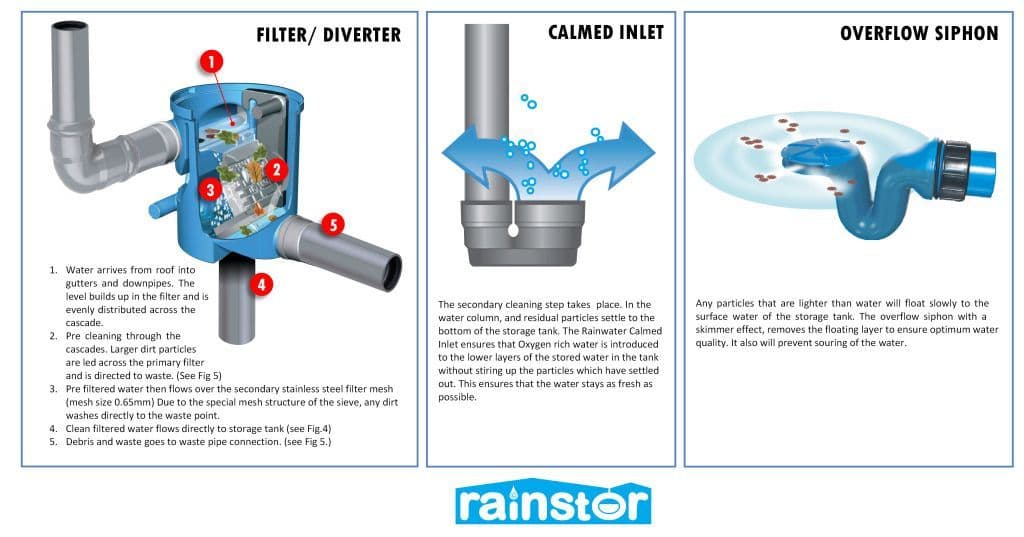

Rainwater filter for installation inside or on the tank. The VF1 Combi has the cleaned water outlet at the bottom of the filter. Whilst the dirt is washed away sidewards, the bottom cleaned water outlet position makes installing the filter in tanks very easily and practically. Where used before the tank, the Combi gives a high degree of flexibility to the angle of direction of the cleaned water outlet pipe, feeding to the rainwater tank. The VF1 Combi can also be fitted directly to the top surface of the rainwater tank, using a seal we can provide. This means it is acting as a second turret to the tank.
Connection capacity for roof areas up to 450 m².
Max. Flow Rate Sieve insert 1.5 l/sec = 5,4 m³ cleaned water per hour.
Height difference between inlet and outlet 300 mm.
Some of the intended uses include livestock watering and spraying when you add this rainwater harvesting kit.
The cleaned water can be used in washing machines, toilet flushing and garden watering, in homes, in commerce, in public buildings and in industry.
The filter has to be cleaned depending on the contamination 1 – 2 times during the year
